Building the Andino robot

Wiring

Just a few quick observations about wiring:

• To make it easier to share the 5 V and ground lines, I used a D2-6 wire splice connector.
• I had to use three USB cables to connect: the Lidar to the Raspberry Pi (micro USB to USB-A); the Arduino Nano to the Raspberry Pi (USB-C to USB-A); and the Powerbank to the Raspberry Pi (USB-C to USB-C). In some cases I didn’t have shorter cables, so you can clearly see the cables standing out in the robot.
• Pay attention to the wiring and double check it. For example, it was not an actual wiring issue, but I only realized later that I had to change two wires for one of the motor encoders while testing the robot navigation. I talk more about it in the Motor controlling section.

One last thing about wiring is regarding the power distribution. The documentation suggests powering the circuit using a Powerbank connected to the Raspberry Pi. The Raspberry Pi will then output 5 V directly from the Powerbank through its 5 V pins. This way, if using a Powerbank capable of outputing at least 3 A, there will be around 1 A to 2 A left to power the Arduino and the motors via the motor driver (using the DC-DC Step up regulator module). This is enough and it should be fine. However, as an alternative, it is worth noticing that some people may prefer to have another separate power source (e.g. another Powerbank or a pair of 18650 batteries) to exclusively power the motor driver to minimize any potential risks in case the motor driver consumes too much current or something like that.

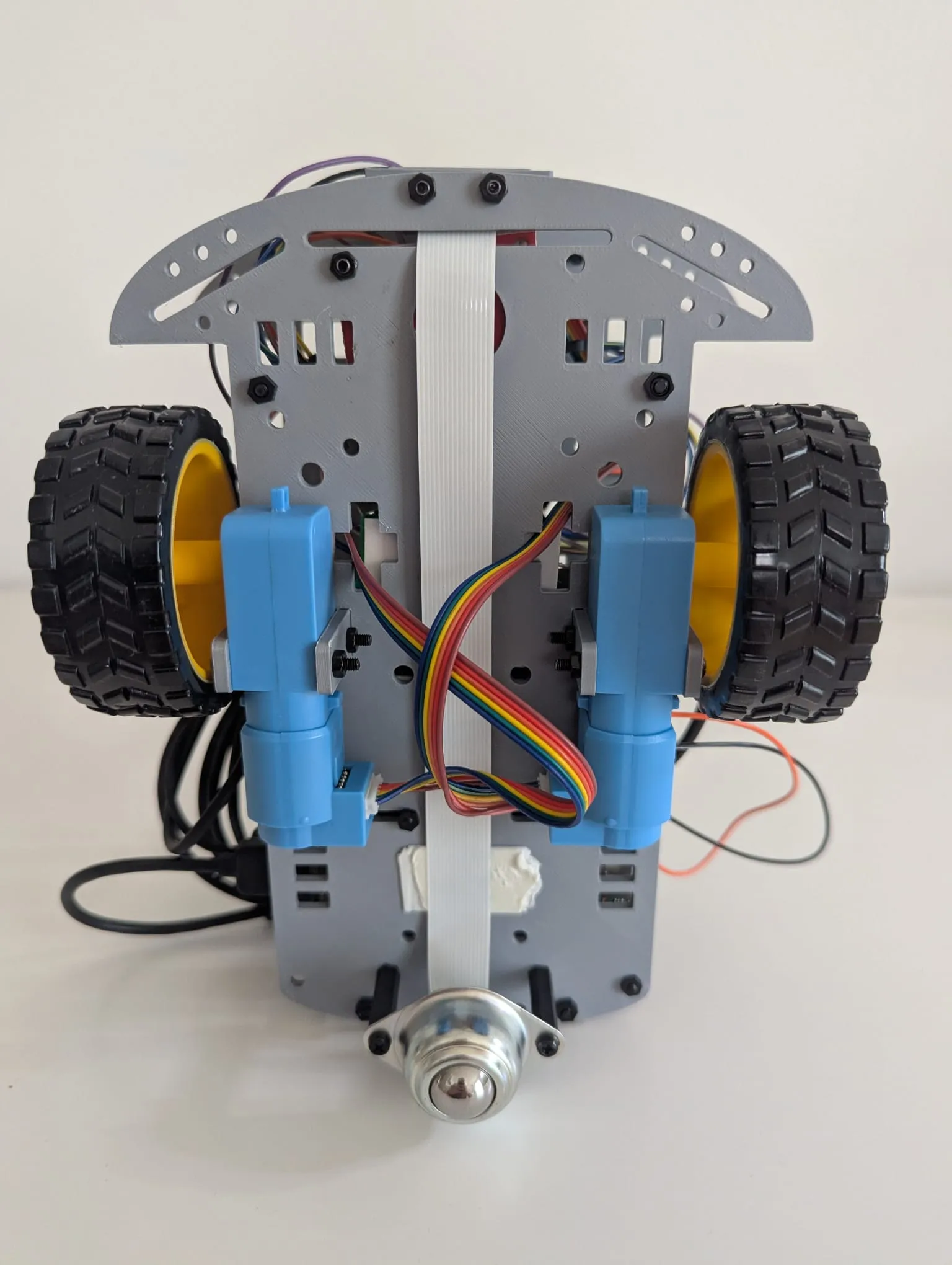

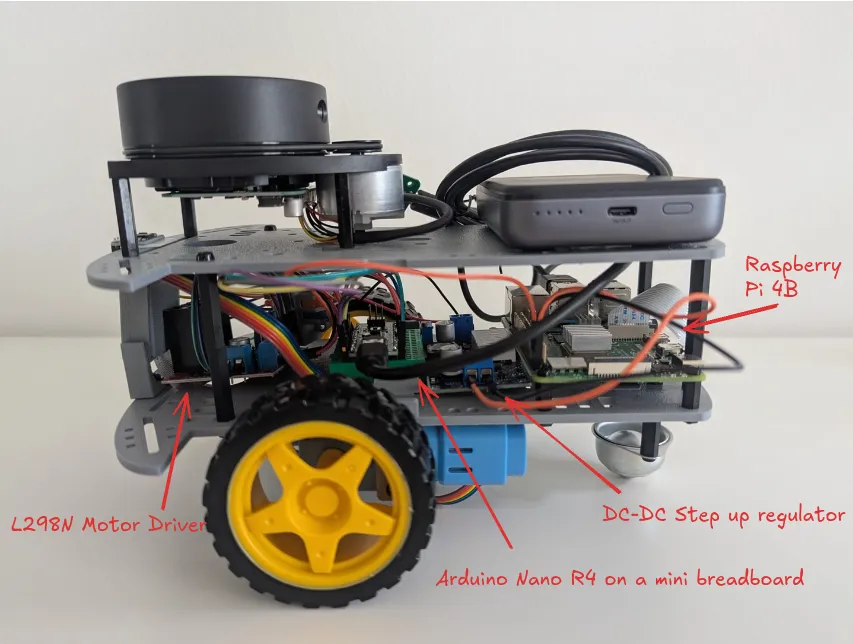

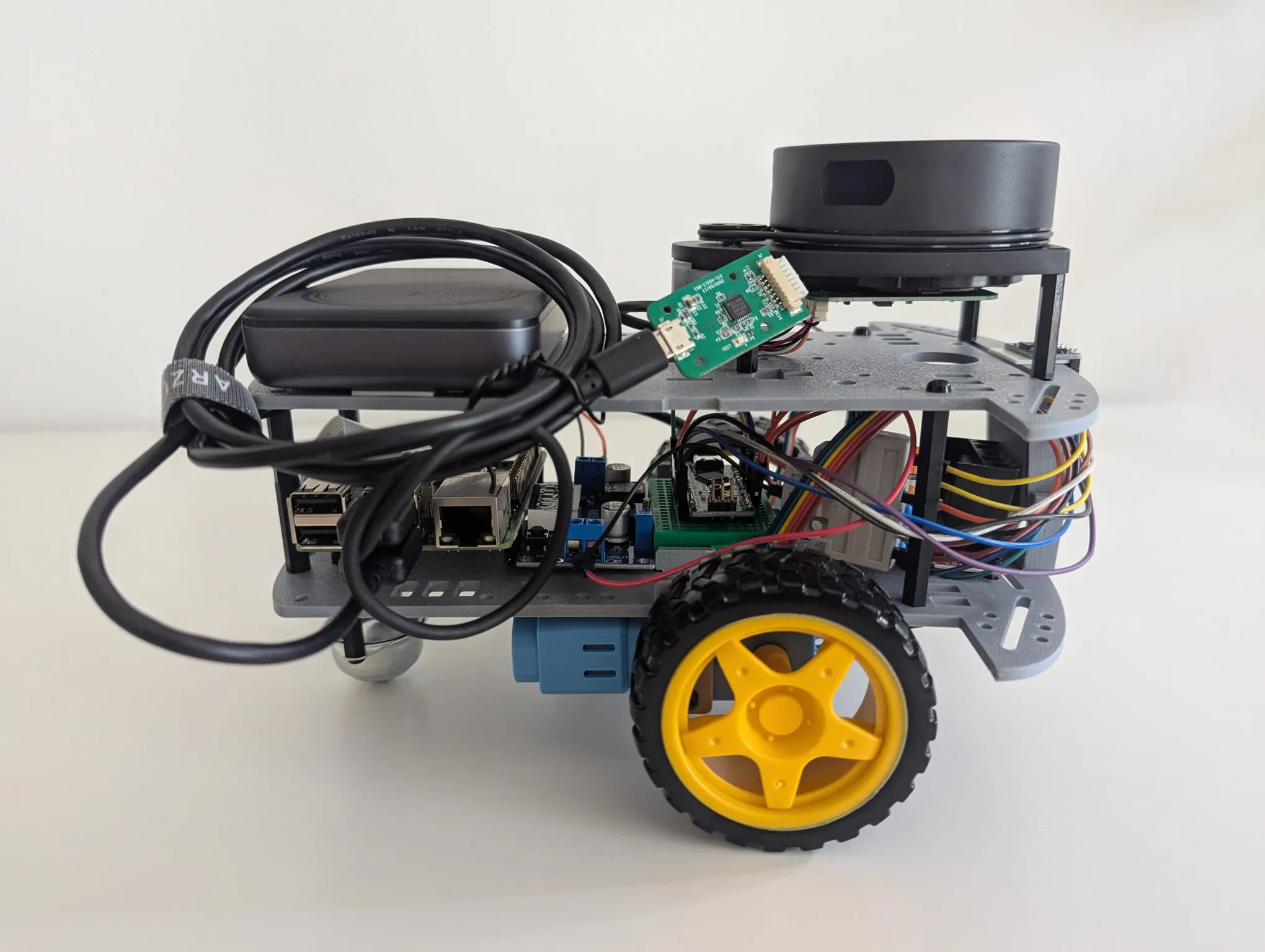

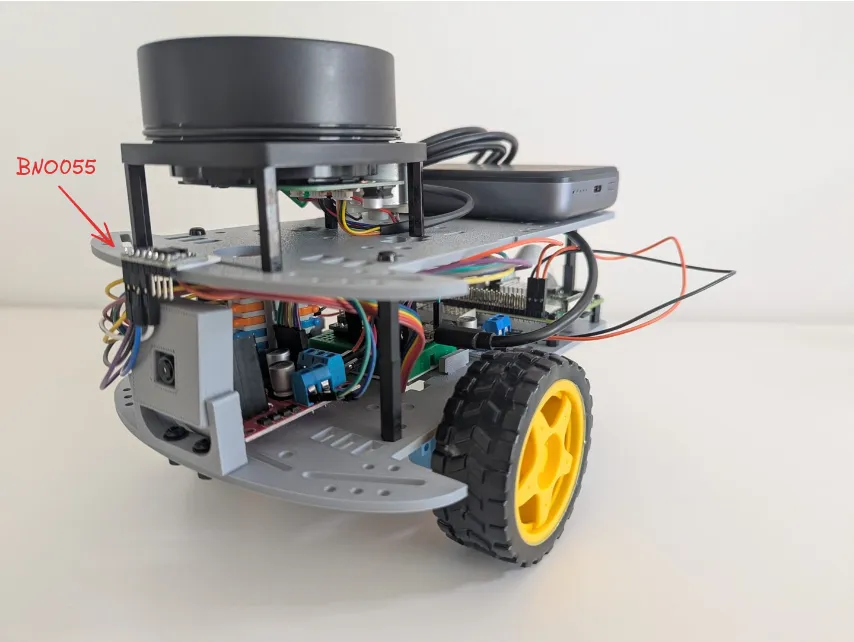

BNO055 IMU board

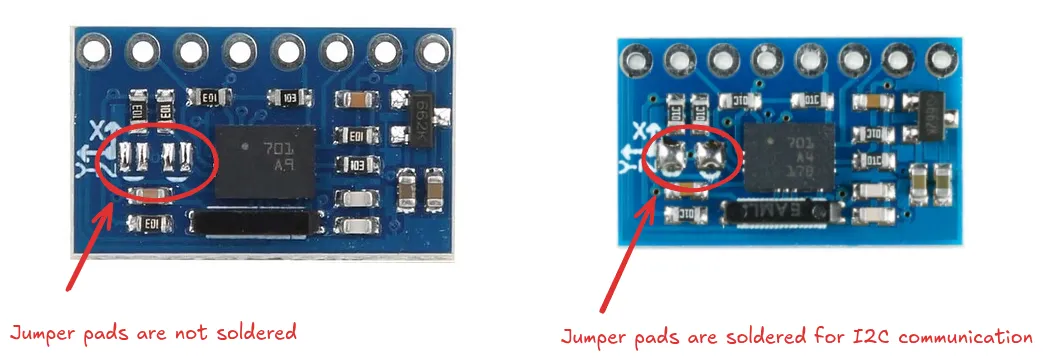

I bought this BNO055 board from Aliexpress. I wasn’t aware of this but this board has two communication modes: I2C and UART. This is dictated by the jumper pads in the board. If the jumpers are open, the board will use UART, otherwise it’ll use I2C. As the Andino software expects I2C communication with the IMU board, I had to solder these pads. You can see what I mean in the images below:

I realized this while testing the board separately with the Arduino Nano. The serial communication wasn’t being initiliazed and I couldn’t get any readings from the board. The code to test it is the same as the one for the Adafruit BNO055 board and their own library. Be aware that you might need to change the I2C address in the code, like:

/* Here I'm adding the 0x29 I2C address. If you don't provide it,
it'll be 0x28 by default. Your board probably uses one of these addresses,
although the address could be a completely different one. */
Adafruit_BNO055 bno = Adafruit_BNO055(55, 0x29);

Once the jumper pads were soldered, I could get the acceleremoter and gyroscope readings from the board. Then, to finish this part, I fixed the IMU board at the front of the robot with a double sided tape and with the +X axis label on the board pointing forward.

Firmware upload

As I described in the hardware section, I built the base of the robot first with the main electronic parts and tested the motor control using the Arduino. I only mounted the Raspberry Pi at this point to be able to power the Arduino and the motor driver for my initial tests. Once everything was right with the Arduino part, I knew that loading the software for the Raspberry Pi (e.g. ROS 2) to talk to the Arduino, and adding the rest of the components, like the Lidar, would be easier to test and validate.

Therefore, to test that the Arduino software (firmware) was working and it was interpreting the serial commands properly, I basically followed the instructions for the firmware upload using PlatformIO as described in the repository. One observation here is that depending on the Arduino Nano board, it might be using the new bootloader for Nano, so you might have to update the environment configuration for the Nano in the platformio.ini file, like so:

...
; Environment for Arduino Nano.
[env:nanoatmega328new]
extends = base_build, base_atmelavr
board = nanoatmega328new
...

One extra thing that I did was to add the monitor_echo config to the [base_atmelavr] configuration:

; Base configuration for Atmel AVR based Arduino boards.
[base_atmelavr]
...
monitor_speed = 57600
monitor_echo = yes
test_ignore = desktop/*
lib_deps =
  ...

This way, when I was testing sending serial commands via the serial monitor interface with PlatformIO, I could see what I was typing, and not only the Arduino serial response for my commands.

Motor controlling

In the description and Test it! sections for the Andino firmware documentation we can see which serial commands should be sent to the firmware so it can perform actions like reading the motor encoders or driving the motors.

So, if we want to read the encoders we simply send an e character through the serial port (by using the PlatformIO serial monitor, for example). We should get a pair of numbers, one for each motor encoder. Then, if we want to drive both motors at full speed, in the same direction, we simply send o 255 255. The documentation is very clear about it. One important thing though that I’d like to mention here is the importance of validating the motor encoder readings before moving forward with the rest of the building and software installation.

We need to be sure that we’ll get positive values for both motor encoders when turning the wheel manually in the forward direction. We basically send the r command via the serial port to set the encoders to zero, then we use our hands to move each wheel a bit in the robot forward direction, and finally send the e command to read the encoder values. If we get two positive readings, we’re fine. The opposite is also true, test moving each wheel a bit in the robot backward direction and see if we get two negative readings. When I was building the robot I only checked one of the wheels and moved foward with the building. Then, when testing the robot autonomous navigation later I noticed that the robot wasn’t moving correctly. By checking the odometry, via the ROS /odom topic in RViz, I noticed that whenever I drove the robot forward, the odom topic was indicating that the robot was actually rotating. This was because the left motor encoder was returning a positive value and the right motor encoder was returning a negative value, which is essentialy a rotation (one wheel moving forward and another way moving backwards). It was a sensor reading issue, not an actual drive issue, because the robot was moving forward correctly. Even though I had connected the wires in the same way as in the documentation (I double checked it), the encoder readings were inverted for the right wheel for whatever reason. Then, instead of doing changes to the code to compensate for that, I simply switched the Encoder - Pin (A) and Encoder - Pin (B) connections for the right motor encoder (it should return positive readings when moving forward). In the end, instead of having Encoder - Pin (A) connected to the Arduino Nano A2 Pin as in the documentation, I connected it to the Arduino Nano A3 Pin. Consequently, I connected the Encoder - Pin (B) to the Arduino Nano A2 Pin instead of the Arduino Nano A3 Pin.

Arduino communication

Once the Raspberry Pi software is installed, we can test its communication with the Arduino board. The Raspberry Pi needs a program to communicate with the Arduino via its serial interface (using the USB cable). The program is implemented as a Differential Drive interface from ROS 2 control, to be used by the other Andino ROS 2 nodes. The implementation lives inside the andino_base package. This package also has a motor_driver_demo example application that we can quickly use to test the motor encoder readings and motor drive in the same way that the Rapsberry Pi would do when communicating with the Arduino. This is because both the motor_driver_demo and the differential drive interface rely on the MotorDriver class. So, we can easily start our tests by running the demo application. We first need to build the ROS 2 workspace, which we already did by completing the Raspberry Pi software installation section of the documentation, in particular, the create workspace one. Then, assuming that you also fixed the USB port names like me, we can open a terminal on Ubuntu Mate, in the Raspberry Pi, navigate to the workspace, source it with source install/setup.bash just to be sure, then:

• Read the encoder values for the motors with: motor_driver_demo --serial_port=/dev/ttyUSB_ARDUINO --msg='e'
• Drive both motor wheels at full speed forward with: motor_driver_demo --serial_port=/dev/ttyUSB_ARDUINO --msg='o 255 255'

We can also check again that the encoder readings are fine, just to be sure, for the reasons explained before.

At this point, you might face an issue, like I did. When running the demo I was constantly getting Response to X timed out errors, where X represents one of the provided commands like e or o. If these errors are showing up here, they will probably show up later as well when running the robot bringup code. After seeing theses errors I wanted to verify if this was an issue with the firwmare installed in the Andino or not. I installed picocom in the Raspberry Pi with sudo apt install picocom and I opened a serial connection with the Arduino using picocom -b 57600 /dev/ttyUSB_ARDUINO. Then, I sent the e command to read from the motor encoders and I got a proper reading, no timeout. I also sent a o 255 255 command to see if the motors were being driven properly as well, and everything was fine. Thus, the issue was probably related to the serial communication opened by the MotorDriver class itself.

As the Andino project uses Libserial to help with the serial communication, I was suspecting of issues using the library, as each library might have different configurations to open a serial port and things like that. So, I decided to create two small C++ programs using different serial libraries to test the Arduino communication directly from my PC instead. This way, I could understand if the Libserial library was the problem, or something else in the code or the way it was used. You can check out the cpp_serial project with these two C++ programs. I simply wanted the C++ programs to send a single serial command to the Arduino, connected via USB to my PC (running Linux), in a similar fashion as the demo application, using the same serial configurations but with different serial libraries. I also targeted the /dev/ttyUSB0 directly in these programs, so you can change this port in the project code if your Arduino board shows up as another USB port on your PC. By the way, nothing blocks you on running these programs directly in the Raspberry Pi as well. The project uses Pixi as the package manager, so it is very easy to use. That said, with the two C++ programs I noticed that I could read from the Arduino encoder values 100% of the time, without a timeout, using the Boost and Termios serial libraries. After all the tests, I knew that the Arduino firmware was working properly and that I could use the same serial configurations as the Andino project to talk to it. So, it was certainly an issue in the way that Libserial was opening the serial port to communicate with the Arduino.

To solve this mistery, I deep dived into the motor demo application and the MotorDriver class. I wanted to understand why I was getting timeouts and if I could handle it without switching the Libserial library. After my findings and as a way to contribute to this amazing Andino project, I’ve created an issue in the Andino repository and also a pull request (PR) to tackle this same issue. You can check them out, if you want 🙂.

Remote communication

Once I knew that the Raspberry Pi could communicate properly with the Arduino, it was time to test some of the ROS 2 programs. For that, we first need to bring up the robot, that is, start all the ROS 2 nodes that will perform the essential robot initilization tasks, like: connect to the Arduino, reset the values for the motor encoders, create the /odom topic, start reading from the Lidar sensor, IMU and etc. At this point, the robot will be ready to start running more complex tasks, like navigation. The bringup program should always be running in a terminal, while we open new terminal sessions to run other programs.

Ok, so we need to run a set of programs to do some useful things with the Andino. We basically connect the Andino robot to an external display, mouse and keyboard, then we start the bringup programs, right? Besides, what about starting the autonomous navigation program and then following up the navigation path through a visualization program (e.g. RViz) while the robot is moving? Does all of this still sound reasonable? In my opinion, it might be doable, but very cumbersome. Instead of physically accessing the Andino every time we want to run something on it, it’s better to just remotely connect to it as I’ve been talking about.

As we have a SSH server configured in the Andino at this point, we can simply use Visual Studio Code with the Remote SSH extension to easily connect to the robot via SSH from our PCs. Then, we can navigate through the Andino filesystem normally from the editor and also open a terminal to run commands directly in the Raspberry Pi as we would do if a keyboard was connected to it. As I mentioned previously in this post, if you have installed Ubuntu with the Require my password to log in option disabled, connecting to the robot becomes even easier because you can simply turn on the power for your robot, give some seconds for it to boot up and then try to connect to it via SSH until it succeeds. Once you’re in, you can run the ROS 2 bringup command. Just be aware that sometimes the bringup exits for whatever reason when you first start it. What I do is to simply run it again, until ROS 2 has spawned all bringup nodes and the terminal session just stops outputting logs, without exiting the bringup program, showing that everything is up. If you want to check what is the expected output for the bringup program, you can check the Expected behavior session in the issue description that I created.

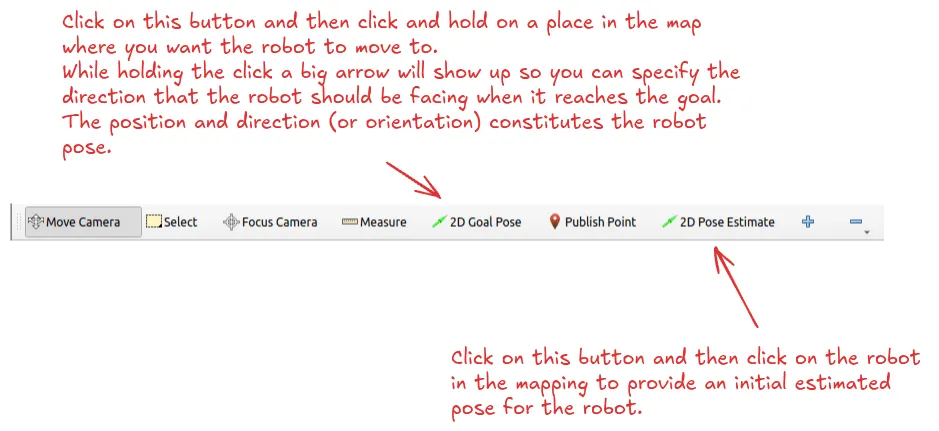

Now that we can bring up the Andino remotely, I’d like to give another tip. Previously I mentioned Rviz, which is a nice visualization software to help us see the data coming from the robot, and more. For example, RViz will make it easier to see the robot mapping and localization, and also to give navigation goals to the robot. However, even though we can connect to the Andino remotely via SSH, we can’t see a graphical interface running in the Andino through SSH, the protocol doesn’t have this feature. We could use a VNC program to help us with that, allowing us to connect remotely to the Andino using a graphical interface instead. VNC is an option, but I believe there is a better way as we’re using ROS 2.

ROS 2 is a distributed framework, meaning that as long as the nodes can find each other in a network, then can easily communicate with each other via topics, services or actions. For that, we first need to set some environment variables so the nodes can find each other. We’ll start by defining these variables in the ~/.bashrc file in the Raspberry Pi. This way, every time we open a new terminal session in the Raspberry Pi, these variables will be exported and made available to the ROS 2 nodes:

# For ROS 2
export ROS_DISTRO=humble
export ROS_DOMAIN_ID=0
export ROS_LOCALHOST_ONLY=0
source /opt/ros/humble/setup.bash

Notice that we’re setting the ROS distribution to humble, as we’ve installed it per instructions in the Andino documentation, if you followed along with the links in this post. We also set ROS_LOCALHOST_ONLY=0, meaning that ROS 2 communication can happen outside the localhost. Finally, we define ROS_DOMAIN_ID=0, which allows ROS 2 nodes on the same domain to freely discover and send messages to each other using DDS (the default middleware protocol used for distributed communication in ROS 2), ROS 2 nodes on different DDS domains cannot find each other. You can read more about the DOMAIN ID and LOCALHOST ONLY in the ROS 2 documentation. To help us further, we also source the ROS 2 worskpace, which makes ROS 2 commands available to us as well in the terminal session.

With the ROS environment variables configured on the Andino side, we can set up the Andino workspace and similar environment variables on our PCs as well. This allow us to run other Andino ROS 2 programs, like navigation, and visualize the robot data using RViz directly on the PC over our local WiFi network. This can be achieved because ROS 2 programs (or nodes) can find each other in a network if this is properly configured, as we’re doing. The nodes will communicate with each other by exchanging messages through topics, services and actions. So, the navigation nodes running in our PC can read /odom topics published by the Andino, for example, and they can publish velocity vectors in the cmd_vel topic subscribed by the Andino in order to move the robot. Once the configuration is done on the PC side, we can easily teleoperate the robot over WiFi using the teleoperation node.

To make it easier to set up the Andino workspace on the PC along with ROS 2, we can use a Docker container. The process is relatively easy once we have Docker installed. Then, we just need to clone the Andino repository, humble branch, open it with VS Code and use the Dev Containers extension. The Dev Containers extension requires a .devcontainer folder with a devcontainer.json file in it to work. The extension will read the configuration provided in the devcontainer.json file to set up our project within an isolated docker container that we can iteract with from inside VS Code as if we were working locally in a folder on our PC. The Dev Containers extension can detect this devcontainer.json file automatically and prompt us with actions like Rebuild container to spin up the Docker container for us and open the container filesystem inside VS Code. If you’re not sure about how to use it, have a look at the Developing inside a Container documentation. I’m assuming that you’re using a Linux OS on your PC. This remote communication process might also work on Mac, but I haven’t tested it. On Windows, I tried to make it work using WSL 2 and Docker Desktop for Windows, but something in the way that WSL 2 sets up its network and uses Docker wasn’t quite working. I also tried installing the Docker engine directly inside WSL 2 and I even configured the Mirrored mode networking for WSL 2 without luck. That said, someone else might be able to persist a bit more with this Windows setup than I did.

Moving on to the devcontainer.json file, I have seen one example in this PR opened by Romu10 in the Andino repository. I used it as an example to create my own (feel free to copy and paste it):

{
  "name": "Andino",
  "build": {
    "context": "../",
    "dockerfile": "../docker/Dockerfile",
    "args": {
      "USERID": "${localEnv:USER_UID:1000}",
      "USER": "${localEnv:USER}"
    },
    "options": ["--ssh=default"]
  },
  "workspaceFolder": "/home/${localEnv:USER}/ws",
  "mounts": [
    "source=${localWorkspaceFolder},target=/home/${localEnv:USER}/ws/src,type=bind",
    "source=/tmp/.X11-unix,target=/tmp/.X11-unix,type=bind",
    "source=${localEnv:HOME}/.ssh,target=/home/${localEnv:USER}/.ssh,type=bind"
  ],
  "runArgs": [
    "--net=host",
    "--hostname=${localEnv:HOSTNAME}",
    "--name=ros2_humble_andino_container",
    "--gpus=all",
    "--runtime=nvidia"
  ],
  "containerEnv": {
    "DISPLAY": "${localEnv:DISPLAY}",
    "ROS_DOMAIN_ID": "0",
    "ROS_LOCALHOST_ONLY": "0",
    "NVIDIA_DRIVER_CAPABILITIES": "all"
  },
  "postCreateCommand": "/bin/bash -c 'rosdep install --from-paths src --ignore-src -i -y && colcon build && source install/setup.bash'",
  "shutdownAction": "stopContainer",
  "customizations": {
    "vscode": {
      "extensions": [
        "ms-vscode.cpptools-extension-pack",
        "ms-python.python",
        "ms-iot.vscode-ros",
        "redhat.vscode-xml",
        "redhat.vscode-yaml"
      ],
      "settings": {
        "terminal.integrated.shell.linux": "/bin/bash"
      }
    }
  }
}

// REMINDER
// Please run xhost +local:docker on your host machine.

// Add the following line to .bashrc:
//  export USER_UID=$(id -u)
//  export USER=$(whoami)
//  export HOSTNAME=$(hostname)

Note that it is recommended that you export some environment variables on your system:

export USER_UID=$(id -u)
export USER=$(whoami)
export HOSTNAME=$(hostname)

These environment variables will share your Linux user with the Docker container, so the processes inside the container can run as your local user instead of the root user. It’s also recommended to run the terminal command xhost +local:docker before launching this Dev Container on VS Code. The xhost command will allow your Docker container to access your Window Management system so it can open graphical interfaces, like RViz.

We also set the ROS_DOMAIN_ID and ROS_LOCALHOST_ONLY variables for the container with the same values as we set for the Raspberry Pi. Now, the ROS 2 nodes running inside the container on the PC will be able to find the ROS 2 nodes running on the Raspberry Pi over the WiFi network. This is also possible because we’re passing the --net=host argument to the container, which shares the PC’s local network with the container.

You might have seen some NVIDIA and GPU configurations in the devcontainer.json file as well. If you’re planning to run simulations inside the Docker container, which I’ll mention later, it might be useful to allow the container to use the NVIDIA container runtime to run things (of course, if you have a NVIDIA GPU on your PC). For this to happen we have to have the NVIDIA drivers configured on the PC and the Docker runtime configured to use the NVIDIA container runtime. If you don’t have a NVIDIA GPU, you can simply remove the following lines from your .devcontainer/devcontainer.json file, making Docker use the PC’s CPU by default:

{
  ...
  "runArgs": [
    ...
    "--gpus=all",
    "--runtime=nvidia"
  ],
  "containerEnv": {
    ...
    "NVIDIA_DRIVER_CAPABILITIES": "all"
  },
  ...
}

Another optional thing is the SSH configuration provided to the container. As I’m cloning GitHub repositories using SSH, I also would like to commit Git changes that I make inside the container and push them to GitHub. For this, I need to forward my SSH config to the container during development. If you don’t use SSH or use another authentication mechanism like personal access tokens or a credential helper, you might have to use another procedure if you want to able to commit changes inside the container. Then, if you aren’t using SSH, please check the Sharing Git credentials with your container documentation from VS Code. If that’s the case, you can also remove the following lines from your .devcontainer/devcontainer.json file:

{
  ...
  "build": {
    ...
    "options": ["--ssh=default"]
  },
  ...
  "mounts": [
    ...
    "source=${localEnv:HOME}/.ssh,target=/home/${localEnv:USER}/.ssh,type=bind"
  ],
  ...
}

Once you have your devcontainer.json file ready, you might want to read the Simulation section as well, which might have changes complementary to the ones mentioned in this section for the Docker container. Finally, be aware that depending on your WiFi network configuration you might have issues with the remote connection. DDS might have trouble over some WiFi networks, especially regarding multicast. That’s why some people are replacing the default ROS middleware implementation with Zenoh. There is a great talk, Actuate 2024 | Chris Lalancette | Zenoh and ROS 2: Not a Paradox, about this topic that you can check it out. I didn’t have any issues with DSS in my normal WiFi connection at home, though.

Robot navigation

We’re finally ready to make the Andino drive autonomously for the first time. One of the advantages of the ROS 2 ecosystem is the number of great packages that provide us with state of the art algorithms and tooling for robotics. Nav2 is one of these packages. The andino_navigation package implements Nav2 for the Andino, and describes how to run the navigation for the real or the simulated robot. If you’re familiar with Nav2, this should be enough information. Otherwise, keep reading this section if you feel like you need to know a bit more.

First of all, as I already mentioned in this post, we need to be careful with the motor encoder readings, otherwise the Odometry won’t work. Secondly, we also need to have the bringup code running in the Andino with: ros2 launch andino_bringup andino_robot.launch.py. It’s recommended to start RViz in another terminal as well with ros2 launch andino_bringup rviz.launch.py. Basically, these are the steps that we need to perform every time before running other processes. As for the navigation process, the other steps are: create a map of the desired place where we want the Andino to drive autonomously, and use this map to perform the actual autonomous navigation later.

To create the map we can start the teleoperation node in another terminal session with ros2 launch andino_bringup teleop_keyboard.launch.py. If you have a joystick, it’s easier to pilot the robot with it. Otherwise, you can do just fine with your PC’s keyboard. Then, we start the SLAM node in another terminal session with ros2 launch andino_slam slam_toolbox_online_async.launch.py. This node will start mapping the robot’s surroundings while we’re driving the robot around with the teleoperation node. We’ll see on RViz that a map starts to show up. Once we have driven the Andino robot enough and we can see a good initial map for our desired place, we can save the map with ros2 run nav2_map_server map_saver_cli -f ./src/mymap. Here, I’m saving the map with the mymap name inside the src folder in the workspace. I’m assuming you’ll be running these commands from the root folder of your workspace as well (which will be the case if you opened the workspace in your PC using the devcontainer.json file that I shared). Saving the map will actually create two files: mymap.pgm and mymap.yaml. Before we move forward, I have two more tips here. Sometimes the SLAM node dies due to no apparent reason and you might see the Robot Model on RViz failing to render due to the lack of TF transformations, because the ROS 2 topic /map provided by the SLAM node isn’t available. In this case, you can simply restart the SLAM node and possibly RViz as well. You might even need to restart the robot bringup. For the second tip, I noticed that the SLAM node was printing in the terminal some warnings regarding the RPLidar having a minimum laser range equals to 0.2 instead of 0.0 as in the Andino SLAM configuration. So, I just updated the line min_laser_range: 0.0 to min_laser_range: 0.2 in the config/slam_toolbox_online_async.yaml file in the andino_slam package. This seems to be only a minor thing though.

Lastly, now that we have a saved map, we can quit the SLAM node (with CTRL + C in the terminal or just by closing the terminal) and we can start the navigation nodes by providing the YAML map file for the navigation bringup: ros2 launch andino_navigation bringup.launch.py map:=./src/mymap.yaml. Then, on RViz, we need to provide a robot estimated pose via the UI so the navigation package knows more or less where the robot currently is. Once the estimated pose is provided we can give a goal pose in the map to make the robot navigate to this goal autonomously. The below image shows these RViz buttons:

As an observation, you might not see the robot properly rendered on RViz sometimes. I quickly mentioned before that this might be due to the missing /map topic. This topic is created by the Nav2 and SLAM packages when you run any of these. The RViz configuration for the Andino is also using map as the global fixed frame by default. If you only want to see the robot on RViz to check something and don’t intend to use SLAM or navigation, you can change the RViz global fixed Frame to base_footprint or base_link. Otherwise, if map is the global fixed frame, check if you have either the SLAM or navigation nodes running properly so the /map topic becomes available.

In this section I’m only describing a basic example of first creating the map and then navigating using it. There are other options as well to perform things like localization without mapping. If you want to know more, the Nav2 documentation is a great place to start. I also recommend these two videos from the Articulated Robotics channel: Easy SLAM with ROS using slam_toolbox and Making robot navigation easy with Nav2 and ROS!. In the videos, even though it is shown a different robot, Nav2 is used for navigation and the same ideas apply to the Andino navigation packages.

Simulation

We can simulate the Andino robot with Gazebo. By default, the humble version of the Andino project uses Gazebo Classic. You can see how to start a simulation in the andino_gz_classic package inside the Andino repository. However, as Gazebo Classic isn’t supported anymore since 01/2025, I updated the docker/Dockerfile and docker/requirements.txt in my local cloned Andino repository in order to use the Gazebo Fortress version for testing things on the simulation side. Luckily, the Ekumen team also created a new Andino simulation package for the Gazebo Fortress version that I added to the docker/requirements.txt file (ros-humble-andino-gz). The file changes are:

FROM osrf/ros:humble-desktop-full

# Arguments for building
ARG USERID
ARG USER

# Setup environment
ENV TERM linux
ENV DEBIAN_FRONTEND noninteractive
RUN echo 'debconf debconf/frontend select Noninteractive' | debconf-set-selections

# Copy requirement files and install dependencies
COPY docker/requirements.txt .
RUN apt-get update && apt-get install --no-install-recommends -y $(cat requirements.txt)
RUN rm requirements.txt

# Install Gazebo Fortress
RUN sudo sh -c 'echo "deb http://packages.osrfoundation.org/gazebo/ubuntu-stable `lsb_release -cs` main" > /etc/apt/sources.list.d/gazebo-stable.list'
RUN wget http://packages.osrfoundation.org/gazebo.key -O - | sudo apt-key add -
RUN sudo apt-get update
RUN sudo apt-get install ignition-fortress -y

# Create a user with passwordless sudo
RUN adduser --uid $USERID --gecos "ekumen developer" --disabled-password $USER
RUN adduser $USER sudo
RUN echo '%sudo ALL=(ALL) NOPASSWD:ALL' >> /etc/sudoers
RUN echo "export QT_X11_NO_MITSHM=1" >> /home/$USER/.bashrc
RUN echo "export IGN_IP=127.0.0.1" >> /home/$USER/.bashrc
USER $USER

# Adds USER to dialout and plugdev group.
# This is needed to access the serial ports, for further references check
# the libserial documentation.
RUN sudo usermod -a -G dialout $USER
RUN sudo usermod -a -G plugdev $USER

# Creates the src folder of the workspace.
RUN mkdir -p /home/$USER/ws/src

# Adds to bashrc the ros humble overlay sourcing.
RUN echo "source /opt/ros/humble/setup.bash" >> /home/$USER/.bashrc
# Adds to bashrc the project's workspace sourcing.
RUN echo "source /home/$USER/ws/install/setup.bash" >> /home/$USER/.bashrc
# Adds colcon autocomplete
RUN echo "source /usr/share/colcon_argcomplete/hook/colcon-argcomplete.bash" >> /home/$USER/.bashrc

# Updates
RUN sudo apt upgrade -y && sudo apt update && rosdep update

# Download models from fuel
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/OpenRobotics/models/Office Desk"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/OpenRobotics/models/Office Chair"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/OpenRobotics/models/Dining Table"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/OpenRobotics/models/FoodCourtTable1"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/OpenRobotics/models/Depot"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/malbonico/models/Table"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/openrobotics/models/fridge/2"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/openrobotics/models/table/4"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/makerspet/models/tv_65in/1"
RUN ign fuel download --url "https://fuel.gazebosim.org/1.0/openrobotics/models/table/4"

# Defines a workspace folder.
WORKDIR /home/$USER/ws

CMD ["/bin/bash"]

apt-utils
bash-completion
build-essential
curl
debian-archive-keyring
debian-keyring
evtest
gdb
git
gnupg2
gpg-agent
joystick
jstest-gtk
locales
lsb-release
mercurial
nano
openssh-server
python3
python3-pip
python3-setuptools
ros-humble-andino-gz
software-properties-common
sudo
tmux
xterm
wget

You can read the Andino simulation package documentation to see which commands to use. As we already did the Docker setup on our PC with VS Code, we can simply run the simulation inside the container as well. Very nice!
